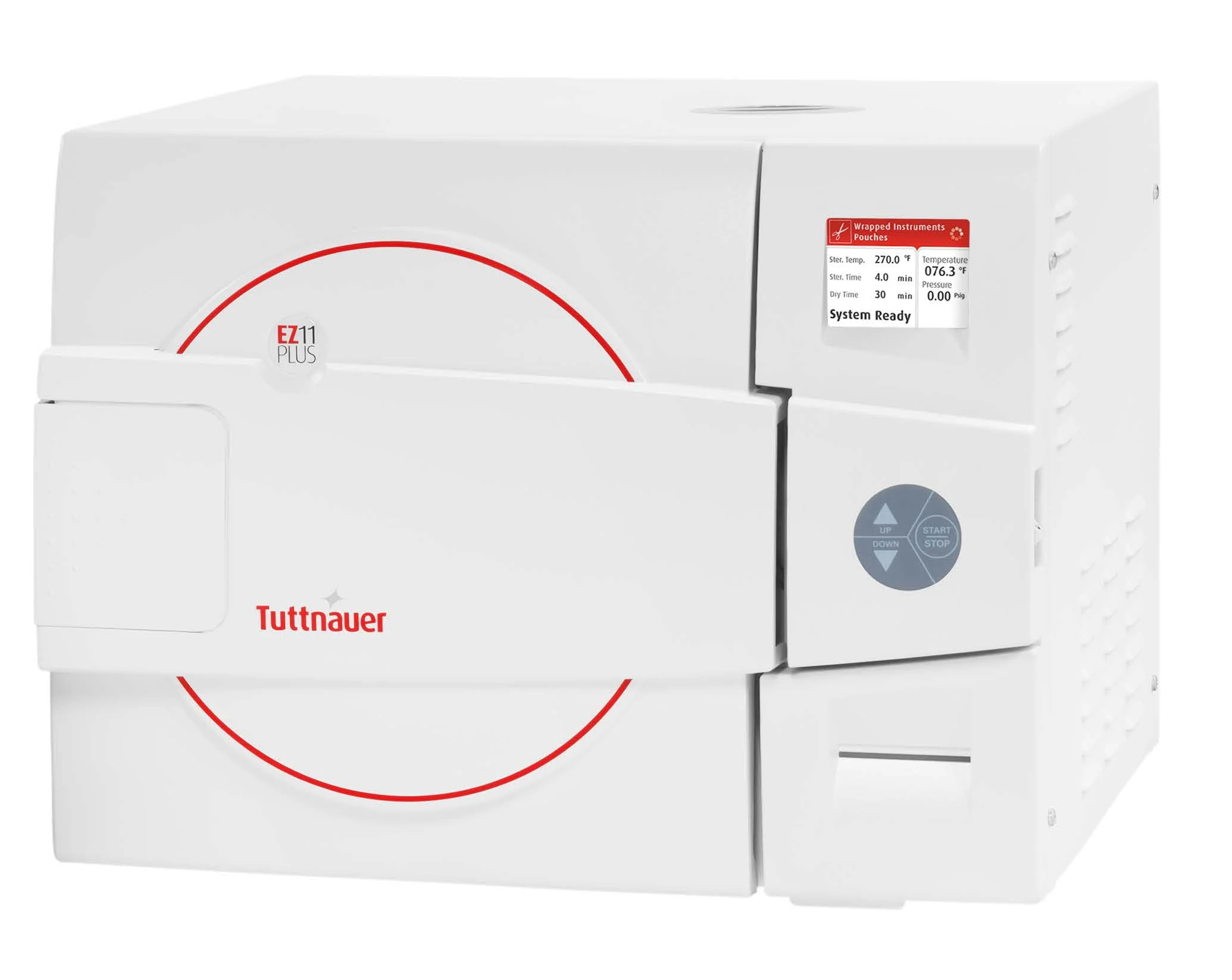

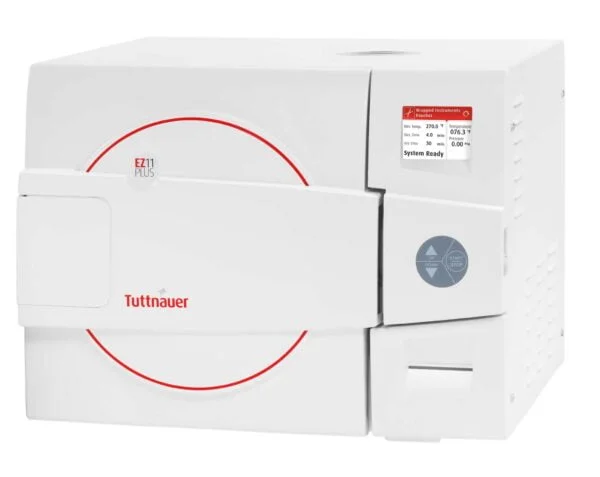

Powerfully easy. Outpace demanding workloads with full regulatory compliance. The EZ11Plus model boasts several key features, including the newly designed EZGlide self-locking door, which is ergonomically friendly and can be opened and closed effortlessly. The EZView multicolor display screen is easy to read, even from a distance. If a cycle is not running, the operator can scroll through the EZPad keys —while the door is open— to select a program and review all program parameters. During a running cycle, EZView shows not only the actual temperature and pressure in the chamber but also each stage of the cycle. As the color wheel moves, the colors change for each stage. The convenient EZFill water reservoir can be filled with distilled water from either the top of the unit or through the front-fill funnel located inside the door. Each EZ11Plus fully automatic sterilizer also features Dynamic Air-Removal Technology and an active, closed-door, HEPA-filtered air-drying system to maintain sterility and guarantee efficient drying of packs and pouches. This ensures the door remains closed throughout the dry cycle, encouraging the staff to leave the pouches and packs in the unit until all items are completely dry, a critical step to help ensure the safety of patients, staff, and doctors.
Features:
- EZGlide self-locking door – Ergonomically friendly EZGlide door features effortless opening and closing with an automatic double safety locking mechanism. Glide the door closed with a gentle push to close and lock it=
- EZFill front water filling – Accessible front or topwater filling options
- EZView multi-color display – For easy reading, even from a distance
- Capacity – Available in 9” (EZ9PLUS) and 11” chamber sizes
- Network port (rear located) – For connection to a local network to provide remote monitoring of the system
- Standards and directives – Designed to meet the most current sterilization standards ANSI/AAMI ST55
- Dynamic air removal technology – Effectively removes air from the chamber
- Closed door drying – Door remains closed through the entire dry cycle to maintain sterility and ensure efficient drying. High efficient air pump circulates filtered air through the chamber for fast drying. 0.2μm HEPA air filter (replaceable)
- Comprehensive warranty – 2-year parts and labor and 10-year chamber warranty
Specifications:
- Overall Dimensions (DxWxH) – 24.8” x 20.9” x 17.3” (630mm x 530mm x 440mm)
- Chamber Dimensions – 11” x 19.8” (280mm x 504mm)
- Voltage & Frequency – 120V (50-60Hz)
- Shipping Weight – 122 lbs (56 Kg)
- Chamber Volume – 28.5 liters (7.5 Gallon)
- Tray Capacity – 5 Trays/ Tray Dimensions: 16,3” x 6,7” x 0.6″ (413mm x 169mm x 16mm)
- Power & Current – 1400W (12A)
